电池

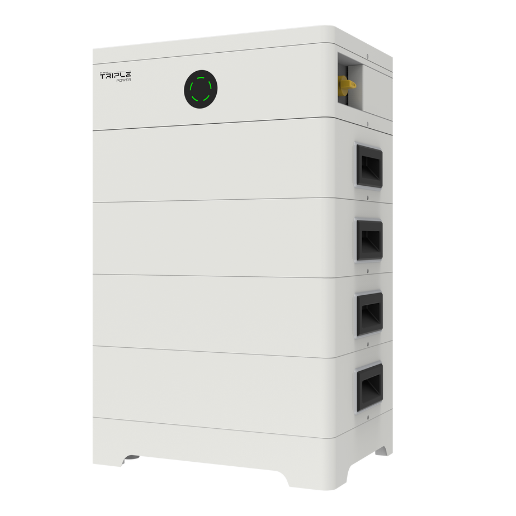

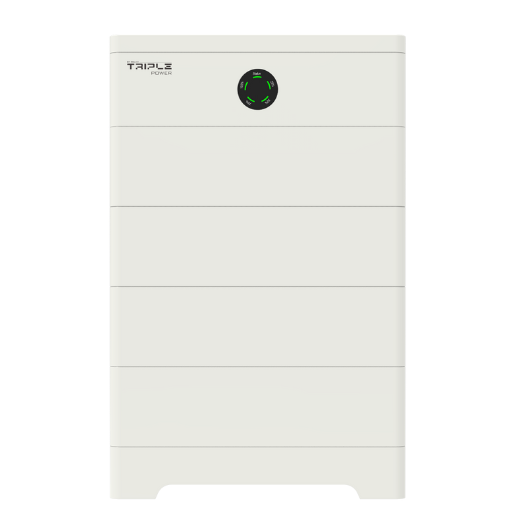

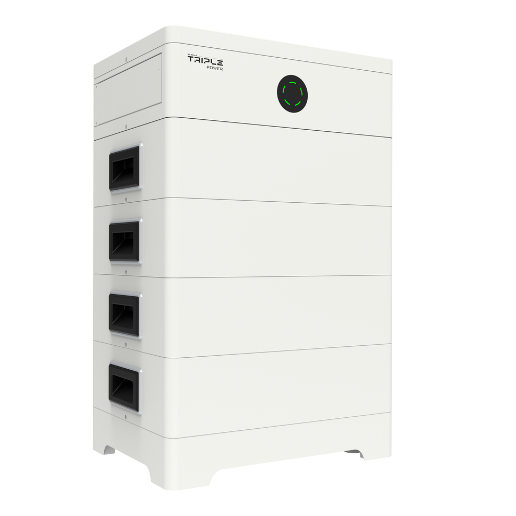

T-BAT-SYS-HV-S2.5
-
5.1千瓦时-33.2千瓦时
该系统采用磷酸铁锂电芯及高性能处理器，系统容量范围覆盖5.1 kWh至33.2 kWh。T-BAT-SYS-HV-S2.5 充放电电流最高达50A，并具备IP65防护等级，确保运行安全可靠。
-
观看视频
产品优势
该产品提供可靠能源亚游国际·(中国区)官方网站，采用堆叠化设计便于安装，适用于并网、离网及备用电源等多种场景。系统搭载安全的磷酸铁锂电芯，确保持久稳定的性能表现，可满足多样化能源需求。
灵活适配
容量可扩展，满足长期使用需求
？榛训设计，即插即用
高性能表现
5.1-33.2 kWh宽容量范围- 最大50A充放电电流
循环次数＞6000次
稳定可靠
磷酸铁锂电芯与高性能处理器
IP65防护等级
智能管理
远程故障诊断、升级与维护
独家电池加热技术，保障低温运行
可选二合一并联线缆，便捷扩容并延长电池寿命
Product Parameters
-
T-BAT HS5.0-
SYSTEM DATA
Number of modules 2 Modules Rated energy 5.12 kWh Rated voltage 102.4 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS7.5
-
SYSTEM DATA
Number of modules 3 Modules Rated energy 7.68 kWh Rated voltage 153.6 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS10.0
-
SYSTEM DATA
Number of modules 4 Modules Rated energy 10.24 kWh Rated voltage 204.8 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS12.5
-
SYSTEM DATA
Number of modules 5 Modules Rated energy 12.80 kWh Rated voltage 256.0 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS15.0
-
SYSTEM DATA
Number of modules 6 Modules Rated energy 15.36 kWh Rated voltage 307.2 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS17.5
-
SYSTEM DATA
Number of modules 7 Modules Rated energy 17.92 kWh Rated voltage 358.4 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS20.0
-
SYSTEM DATA
Number of modules 8 Modules Rated energy 20.48 kWh Rated voltage 409.6 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS22.5
-
SYSTEM DATA
Number of modules 9 Modules Rated energy 23.04 kWh Rated voltage 460.8 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS25.0
-
SYSTEM DATA
Number of modules 10 Modules Rated energy 25.60 kWh Rated voltage 512.0 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS27.5
-
SYSTEM DATA
Number of modules 11 Modules Rated energy 28.16 kWh Rated voltage 563.2 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS30.0
-
SYSTEM DATA
Number of modules 12 Modules Rated energy 30.72 kWh Rated voltage 614.4 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS32.5-
SYSTEM DATA
Number of modules 13 Modules Rated energy 33.28 kWh Rated voltage 665.6 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
